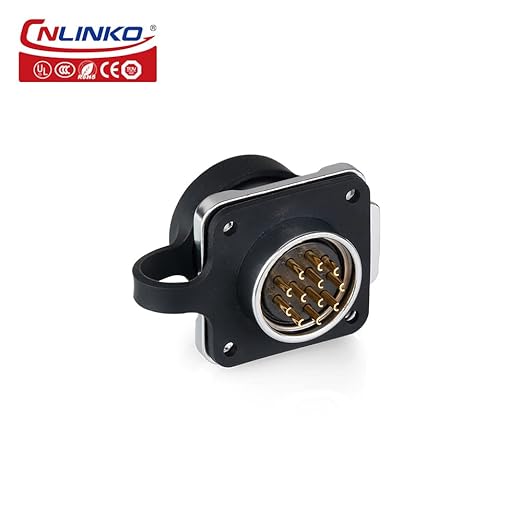

• Black Four-Hole Socket Set Overview: The LP-20-C12PE-01-022(Male Plug) and LP-20-J12SX-03-401(Female Socket) are designed for plug/unplug connections with an IP68 protection rating (when mated), ensuring excellent dust and water resistance.

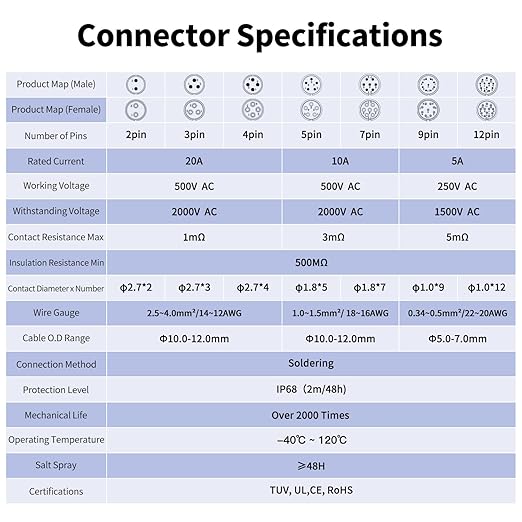

• Cable Specification: Compatible with cables ranging from 0.34-0.5mm² /22-20 AWG with a cable diameter range of Φ5.0~Φ7.0mm. The contact diameter is Φ1.0x12. The connector is designed for over 2000 cycles at temperatures ranging from -40°C to 120°C. Assembly style: solder-assembly.
• Electrical Specifications: Rated for 5A current, 250V AC voltage, and 1500V withstand voltage for 1 minute. Features low contact resistance (<5.0mΩ) and high insulation resistance (>500MΩ) for consistent electrical performance. Note: Avoid powering during insertion.
• Materials: Made with high-strength engineering plastic for the shell, zinc alloy (pearl chrome-plated) for metal parts, and gold-plated copper alloy contacts. Silica gel sealing ensures protection against moisture, dust, and corrosion.
• Versatile Applications: Widely used in servers, communications equipment, solar energy systems, smart grids, electrical power equipment, stage equipment, ship equipment, vehicle equipment, and heavy machinery. Ideal for a wide range of industrial and professional applications.
